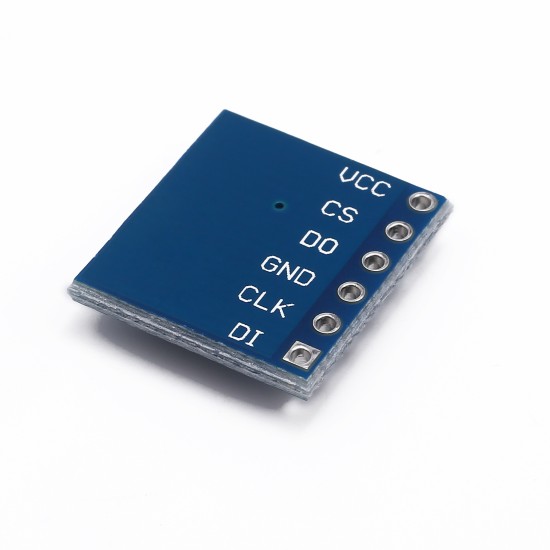

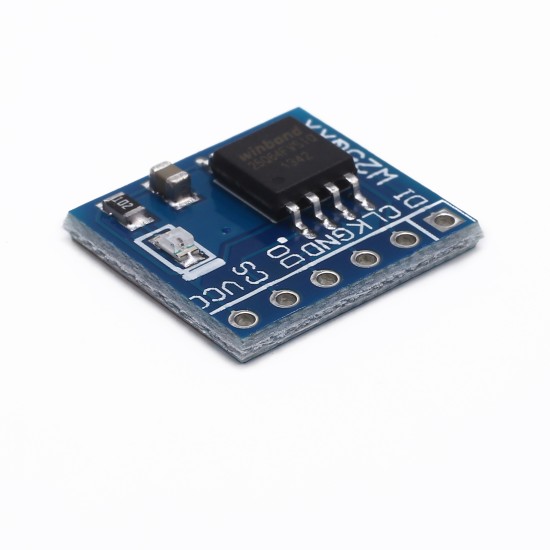

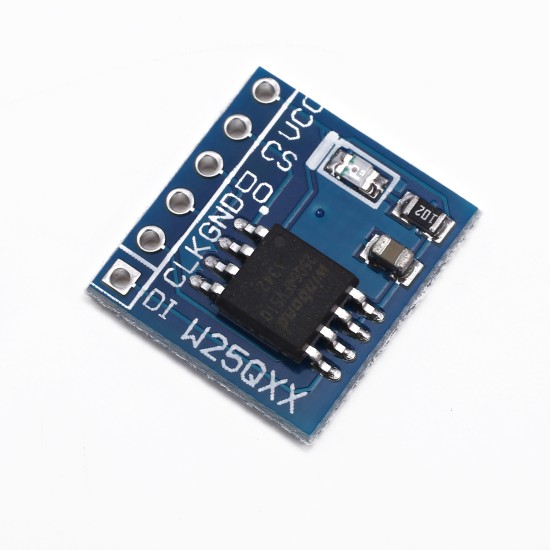

W25Q64 64MBIT 8MBYTE Flash Storage Module DataFlash SPI interface BV FV

The W25QXX series is a large -capacity SPI Flash product launched by Winbon Company,

The capacity of W25Q32 is 32Mbit,
The capacity of W25Q64 is 64MBIT (product on this page), and
The capacity of W25Q128 is 128Mbit.

Product characteristics:
Use serial NOR FLASH to expand the storage chip W25Q64
Support SPI interface
Provide STM32 test code

Main parameters:

Capacity: 64M-BIT / 8M-Byte
Clock frequency: ≤104MHz
Working voltage: 2.7 ~ 3.6V
Size: 14mm × 15mm

Delivery list:

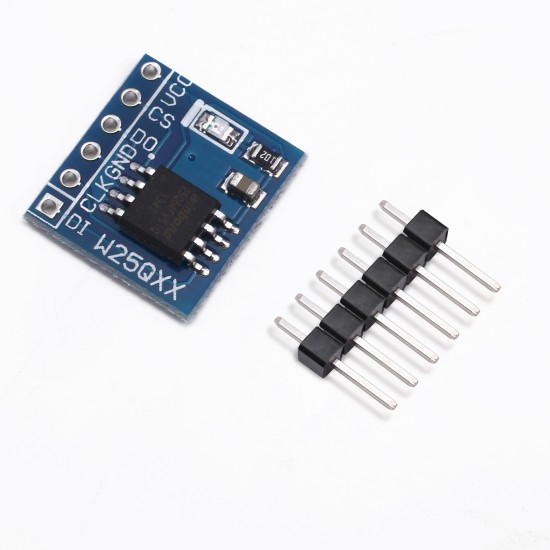

1 -W25Q64 module 1,

2 — 1 needle 1

Product Attributes
Brand	none
Interface	W25Q64
