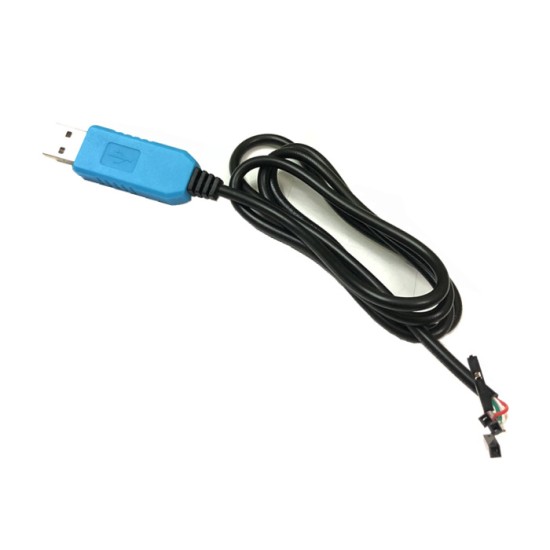

PL2303TA download line USB to TTL RS232 module upgrade module USB to serial port download line

Data download link:

http://pan.baidu.com/s/1ddhbwz3

This is a newly designed product that uses the PL2303TA chip produced by Taiwan Prolific. PL2303TA provides a RS232 -like full -double asynchronous serial device to connect to any general serial bus (USB) host.PL2303TA is perfectly compatible with Win XP/VISTA/7/8/8.1 system, which can simulate most operating systems that allow existing applications based on COM ports to easily transplant and perform USB connection functions without re -writing COM port software.Apply a traditional COM port.

By using the USB batch transmission mode, the advantages of large data buffer and automatic flow control, PL2303TA can achieve higher throughput compared to the traditional UART (universal asynchronous transceiver), the real RS232 signal, the transmission rate is higher than 115200 higher than 115200Base points can be used for even higher performance.PL2303TA's flexible baud generator can be programmed to generate any rate between 75 basis points and 6 million base points.

PL2303TA is a small coincidence that it can easily adapt to any connector and handheld device for mobile and embedded solutions.As the operation or hanging mode is very small, PL2303TA is the perfect power supply bus power supply operation.

This product is specifically targeted at laboratory, product testing, low -cost MCU communication and other applications.

Red +5V

Black GND

White RXD

Green TXD

Product application:

For traditional RS232 devices to single -chip solution upgrade from USB interface

USB turning RS232 converter/cable/encryption dog

Data transmission line of health/medical USB interface

USB interface of personal information entertainment/media player docking

USB interface data transmission line of mobile phone/palm on the computer

Serial-Over-IP's wireless solution

USB barcode/smart card reader

Global positioning system/navigation USB interface

Sales point terminal (POS) terminal/printer

Computer extension dock/port copy

Industrial/Instrument/Automation Control USB interface

USB modem/ wireless/ zigbee's USB interface

USB interface of the set -top box (STB) /home gateway

Batterychager application

USB interface based on MCU -based devices
