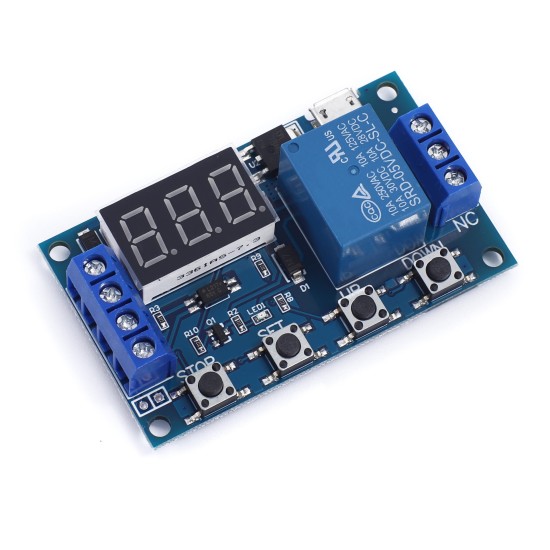

Relaxing the relay module all the way to disconnect and trigger delayed loop fixed -time circuit switch

0.1 second (minimum) ~ 999 minutes (maximum) continuous adjustment

This product is simple and easy to use and powerful, but buyers are requested to look at the operation explanation of this product in detail, very practical products.

Module highlights:

1. Wide -voltage supply (6 ~ 30V) supports Micro USB 5.0V power supply, which is very convenient to use;

2. The interface is clear and simple, powerful, easy to understand, and almost meet all your needs;

3. There is a one -click emergency stop function (STOP key), with anti -connection protection, not burning in reverse;

4. Increased the sleep mode, after enable, there is no operation within 5 minutes, automatically turn off the display; wake up at any button;

5. You can set different OP, CL, and LOP parameters. These parameters are independent and stored separately;

6. All settings parameters are automatically powered off.

Work mode:

P1: After the signal is triggered, the relay is turned on OP time and then disconnects; in OP time, the following operation is as follows

P1.1: The signal is invalid again

P1.2: The signal trigger the timing again

P1.3: The signal trigger the reset again, the relay is disconnected, and the timing is stopped;

P-2: After a trigger signal, after the relay disconnects the CL time, the relay is turned on OP time. After the timing is completed, the relay is disconnected;

P3.1: To trigger a signal. After the relay is turned on OP time, the relay disconnects the CL time, and then circulates the above actions. The signal is given again in the cycle.

P3.2: There is no need to trigger the signal after power -on, the relay drives OP time, the relay disconnects the CL time, and the above action is circulated; the number of cycles (LOP) can be set;

P-4: The signal maintenance function If there is a trigger signal, the timing is clear, and the relay is kept in turn; when the signal disappears, the relay is disconnected after the timing OP;

Product parameters:

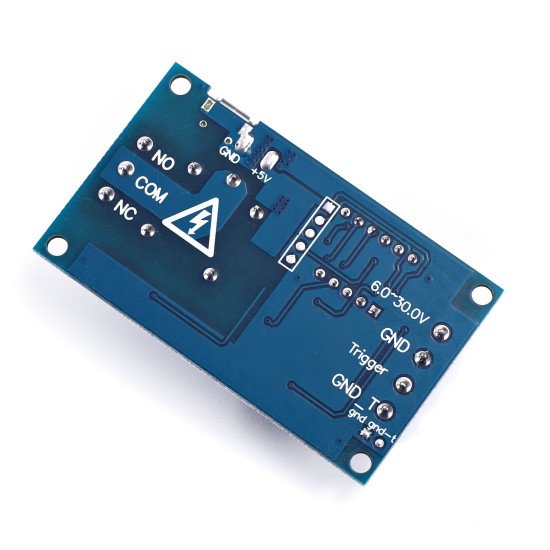

1: Work voltage: 6--30V support Micro USB 5.0V power supply

2: Trigger signal source: High -level level trigger (3.0V -24V) signal signal and systematically improve the system's anti -interference ability (can also be short -connected by yourself)

3: Output ability: You can control the device within the DC 30V 5A or the equipment within 220V5A

4: Static current: 20mA working current: 50mA

5: Life life: greater than 100,000 times; working temperature: -40-85 ° C; Size: 6.2*3.8*1.7cm

6: Bringing light -coupled isolation, enhancing anti -interference capabilities, industrial -level circuit boards, and setting parameters after power out of power

memory.

Special attention: Relay output is a passive contact, without electricity output, controlling a line break.

Chronograph

0.1秒（最小）~999分钟（最大）连续可调

How to choose the timing range:

After setting the parameter value in the mode selection interface, press the STOP key to select the timing range;

Xxx. The decimal point is in a single place, the timing range: 1 second ~ 999 seconds

XX.X decimal points at ten digits, timing range: 0.1 seconds ~ 99.9 seconds

X.x.x. decimal light, timing range: 1 minute ~ 999 minutes

For example, if you want to set OP in 3.2 seconds, then move the decimal point to the ten bits, and the digital tube displays 03.2

Parameter description: OP drive time, CL disconnection time, number of LOP cycles (1-999 times, "---" represent infinite loop)

These parameters are independent of each other, but these parameters are shared by each mode. For example, setting the turn -through time OP in P1.1 is 5 seconds, and the user wants to switch to the P1.2 mode.It will also be 5 seconds;

Press the SET key in the main interface (display 000), the OP (CL, LOP) and the corresponding time XXX will be displayed;

If there is only OP (such as mode P1.1, P1.2, P1.3) in the mode, then the SET key will only display OP and the corresponding time;

If there are OP, CL, LOP (such as mode P3.1, P3.2) in the mode, the SET key will display OP and corresponding time, CL and corresponding time, LOP and corresponding times;

After setting the mode, you can easily view the parameters set in the current mode through the short press SET key, which is very convenient!

How to set parameters

1. First determine the working mode of the relay;

2. According to the working mode of the relay, the current working mode (default P1.1 mode) will be flickered when the main interface is powered on, and then enter the main interface.)"Enter the mode selection interface, and select the mode you want to set by short pressing up and down keys (P1.1 ~ P-4);

3. After selecting the mode to set (for example, P3.2), press the SET key to set the corresponding parameters. At this time, the parameters to be set will flash (OP drive time, CL disconnection time, LOP loop number ("---"Represents unlimited cycle)), adjust the parameter value through UP and DOWN, support long -press (rapid increase or decrease) and short press (increase or reduce 1 unit);To select the decimal point position, select the timing range (the corresponding time is 0.1 seconds to 999 minutes); short press the SET key, set the next parameter of the current mode, the process is the same as above;

4. After setting the parameters of the selection mode, press the SET key for 2 seconds and loosen it. The currently set mode will flash, and then return to the main interface. Setting the parameter success is very simple!

Main interface: "000" (without decimal points) when the relay does not work, there is a decimal point in the working state of the relay, which is very clear!

Mode selection interface: Press the SET key to enter. After the setting is completed, press the SET key to exit and return to the main interface, which is very simple!

STOP button function extension:

Relay enable mode:

1. ON: OP Direction time The relay allowed to be turned on;

2. OFF: Relay prohibit transmission, it is always closed;

Press the STOP button in the main interface to implement the switch between ON and OFF. The current state will flash, and then return to the main interface.(This function is an emergency stop function.

Sleep mode:

1. C-P Sleep mode: Within five minutes, no operation, the digital tube is automatically closed and displayed, and the program runs normally;

2. O-D normal mode: The digital tube is always opened and displayed;

Press the Stop button for 2 seconds and loosen it after 2 seconds to achieve the switching of the C-P and O-D state. The current state will flash, and then return to the main interface.
