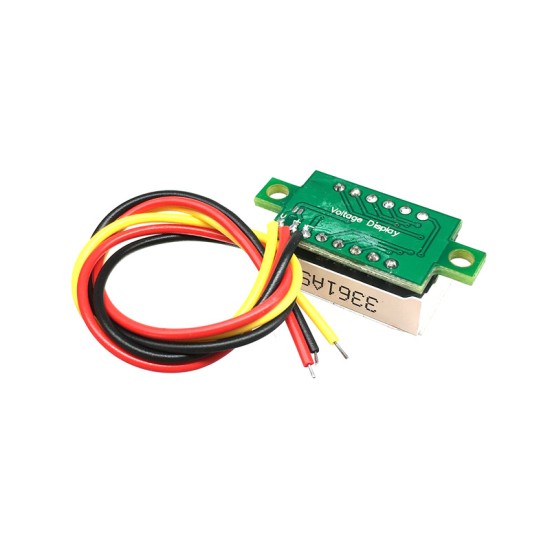

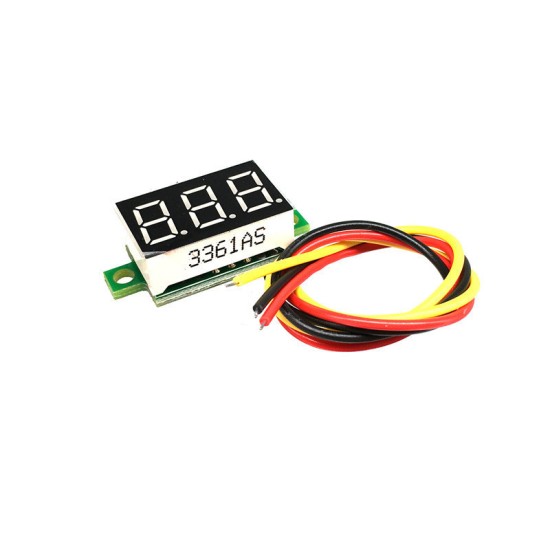

Three-line voltage table 0.36-inch DC 0V-100V DC voltage surface motorcycle voltage table number display table

The volume of the voltage meter is 0.36 inches, the volume DC0-100V, the 2-line and 3-line products are common. Breaking the conventional voltage meter, it is the latest design. It can work directly in circuits such as 5V, 9V, 12V, 24V without voltage.Equipped with three wiring, which is convenient to access the internal line of the car/battery car/motorcycle car. It has anti -connection protection functions.It is used to monitor battery voltage and timely grasp the voltage state of the battery, and can also be used for voltage measurement purposes of other products.Note that the maximum input voltage of the 2 line cannot exceed 30V, otherwise there is a risk of burning.

Note: The three-line use voltage range is 0-100V.

Technical parameter

2 Line work voltage: 4.0 ~ 40V (with anti -connection protection function)

2 Line detection voltage: 0.0 ~ 40V

3 line work voltage: 4.0 ~ 40V (with anti -connection protection function)

3 line detection voltage: 0.0 ~ 100V

Work current: Display: 0.28 "LED, red blue green (color optional)
Measurement rate: ≥200ms/time
Measurement accuracy: 3 ‰

Extreme working conditions

Low -working voltage:+4.0V
Maximum working voltage:+40V
Work temperature: -10 ~+65 ℃
Work humidity: 10-80%(no dew)
Working pressure: 80 ～ 106kPa
Sunshine: No direct exposure

Main features:

1. Good product stability and high measurement accuracy

2. The appearance is standard size, easy to install

3. Power supply power supply adopts polar protection lines
