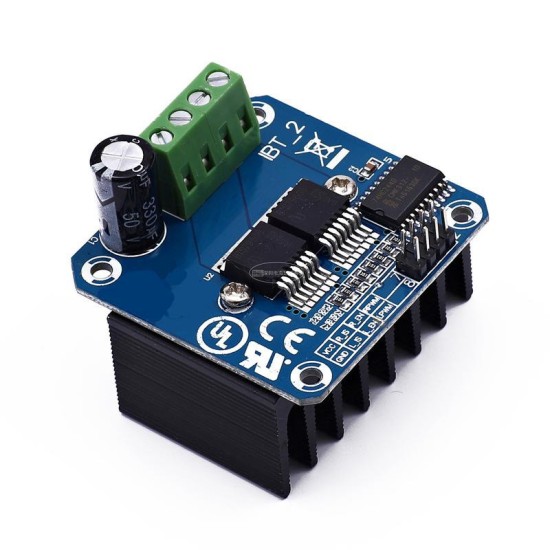

Ultra -power smart vehicle motor drive module BTS7960 43A restricted semiconductor cooling driver

This driver uses an H bridge driver module composed of Yingfei Ling high -power drive chip BTS7960, which has an overheating and overcurrent protection function.Double BTS7960 H bridge driver circuit has a strong driver and braking effect. It uses 74HC244 chip to effectively isolate single chip microcomputer and motor drive!Large current 43A!

Information download: http://pan.baidu.com/s/1jgsvt3k

Ultra -large current output can be up to 43A under the limit case
Current diagnosis
Slope adjustment
Speed area occurs
Over -temperature, over pressure, under pressure, overcurrent protection
Short circuit protection

Electricity:

Model: IBT-2

Input voltage: 6V-27V

Maximum current: 43A

Input level: 3.3-5V

Control method: PWM or level

Little occupation ratio: 0-100 hundred hundred

Product Attributes
Brand	none
