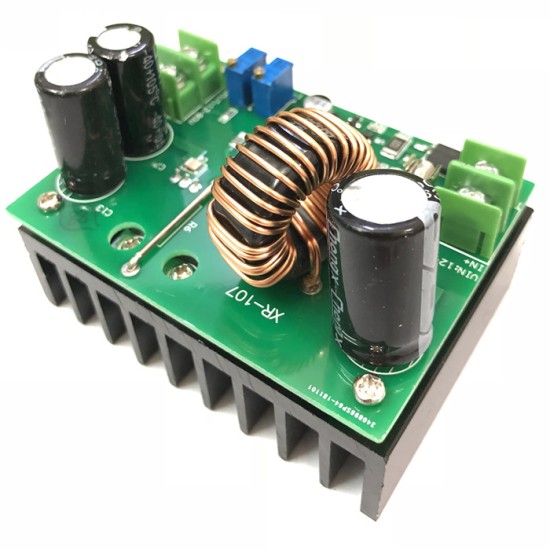

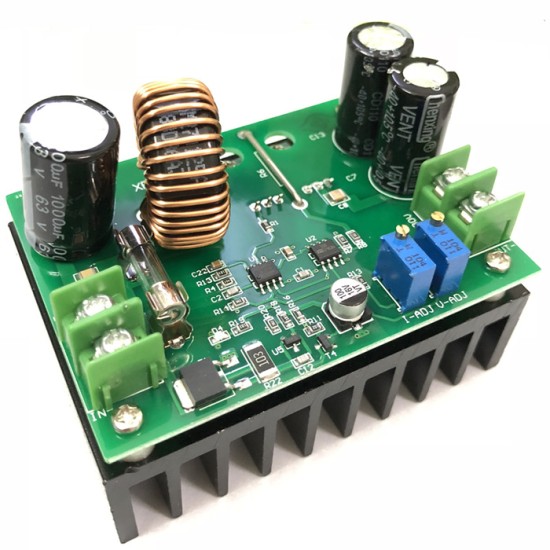

DC-DC boost module Solar laptop power supply 10-60V liters 12-80V high power support 600W

600W high -power boost module, wide voltage input: 12V ~ 60V, 12V ～ 80V adjustable wide voltage output; output current adjustable; ultra -low input output voltage difference.

Detailed parameters:

Input voltage: 12V-60V

Input current: maximum input current 15A

Output voltage: 12V-80V continuous adjustment

Output current: maximum output current 10A (adjustable)

Output power: effective power p = input voltage V * 10A

Conversion efficiency: up to 95%(input voltage, current; output voltage, current affect conversion efficiency)

Short -circuit protection: fuse

Module size: 73*51mm

Weight: 265G module Nature: non -isolation boost module (BOOST)

Input voltage: 12-60VDC input (application for wide input voltage range)

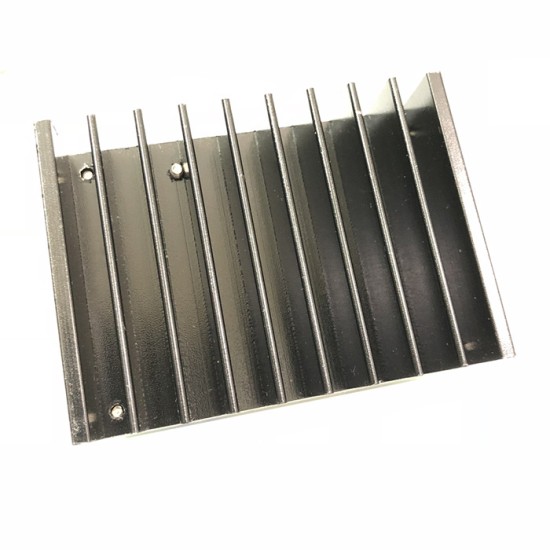

Enter current: 15A (MAX) exceed 10A, please strengthen heat dissipation

Static working current: measured at 15mA (12V liters and 20V, the higher the output voltage, the more static and too much current will increase)

Output voltage: 12-80VDC continuous adjustment is suitable for applications with input voltage less than output voltage.

Output current: 10A MAX exceeds 10A, please strengthen heat dissipation (related to input and output pressure differences, the larger the pressure difference, the smaller the output current)

Output maximum power: = Input voltage*10A, such as: enter 12V*10A = 120W, enter 24V*10A = 240W, enter 36V*10A = 360W, enter 48V*10A = 480W, enter 60V*10A = 600W 600W

If you need to be more power, you can use two modules in parallel. For example, the output requires 15A. You can use two modules to connect it in parallel and adjust the current of each module to 8A.

Work temperature: -40 ~+85 degrees (please strengthen heat dissipation when the ambient temperature is too high)

Working frequency: 150kHz

Conversion efficiency: up to 95%(efficiency is related to input, output voltage, current, voltage difference))

Overcurrent protection: Some (input more than 17A, automatically reduce the output voltage, there is a certain range error.)

Short -circuit protection: there are (input 20A fuse) dual short circuit protection,

Enter anti -connection protection: none,

Scope of application:

1. DIY a voltage voltage power supply, input 12V, output can be adjusted by 12-80V.

2. Power on your electronic device, you can set the output value according to your system voltage.

3. As a power supply power supply, power for your laptop, PDA or various digital products.

4. DIY a high -power notebook mobile power supply: with a lithium battery pack with a large capacity 12V, so that your book can be on wherever you go.

5. Charging the battery or electric vehicle for the stabilization of the solar panel.

6. Use a low -voltage battery to charge the high voltage battery pack or lithium battery.
