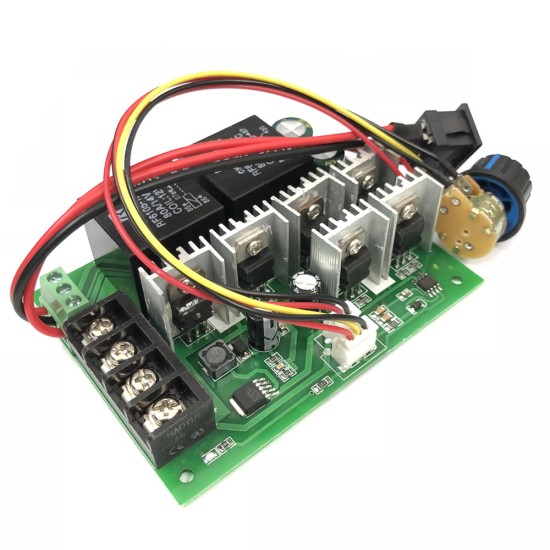

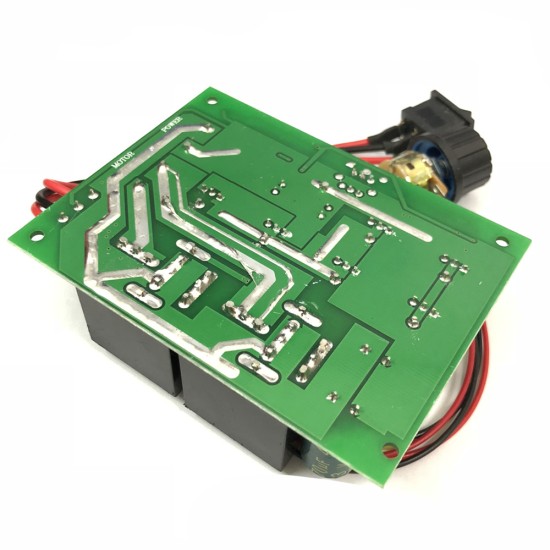

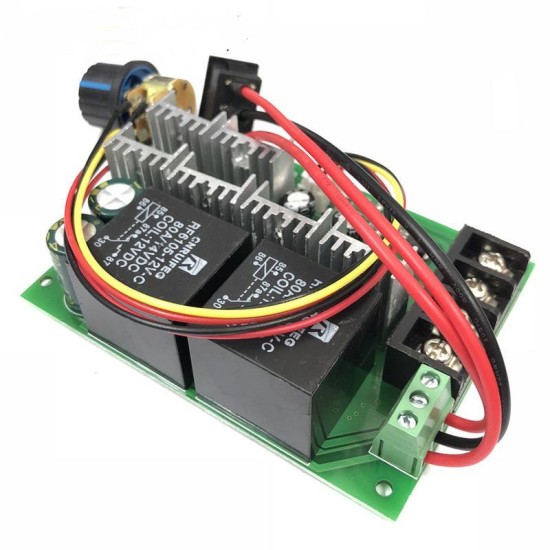

High -power 40A positive and reverse motor speed regulator has a brushing motor positive rotation controller 12v24v36V

Bring a positive and reverse switch, the potentiometer knob with a switch, you can control the positive and reverse with PLC.

Technical indicator

Input voltage: DC10-50V output voltage: load down linearity

Output extreme current: 40A (20A for a long time, pay attention to keeping the module smooth heat dissipation conditions)
Extreme power: 2000W

Type of speed regulation: regulating speed and regulating method: potentiometer (linear)

Speed regulating duty ratio: 0-100% control frequency: 25kHz

Wiring type: fence -type wiring terminal knob line length: 20cm

Product net: 245 grams

Motherboard is installed in size: length*width 100mm*76mm*28mm potentiometer opens the hole: 7mm

Wiring diagram

Make sure the positive and negative connection is correct before power -on. Do not touch the heat dissipation tablet for the wiring, and you may burn the circuit board.Note that this is not a power module, you must connect to the motor to adjust the speed. The output of the universal meter volume of the motor has not changed, and the AC power cannot be connected.It is used for brush motors.

Product Attributes
Brand	none
