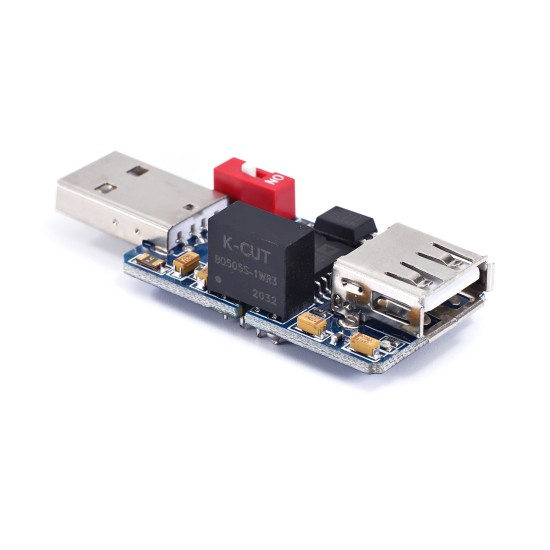

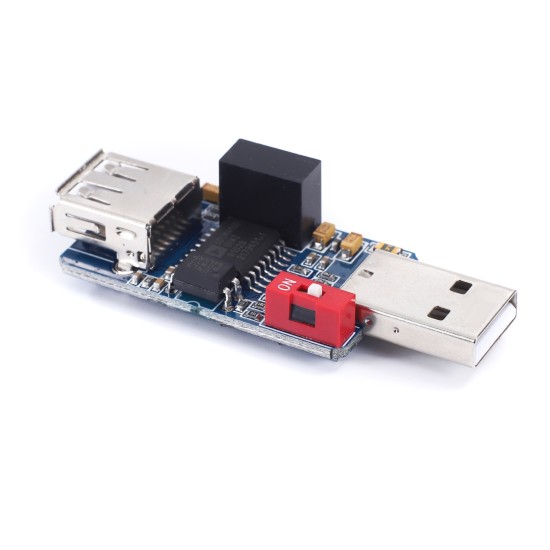

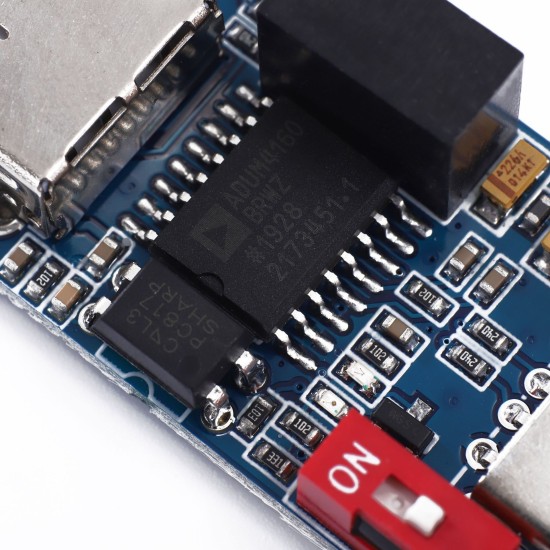

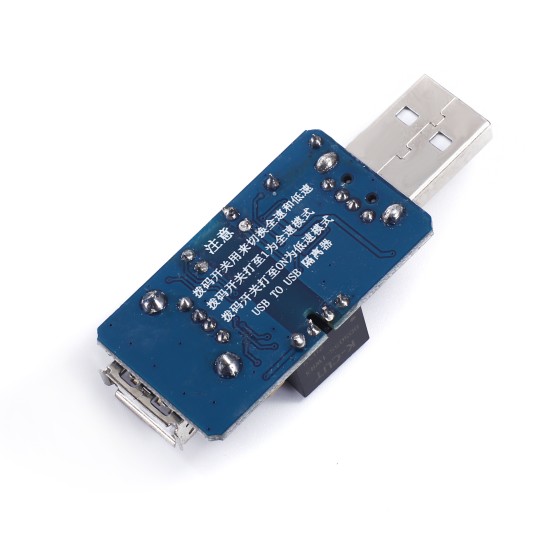

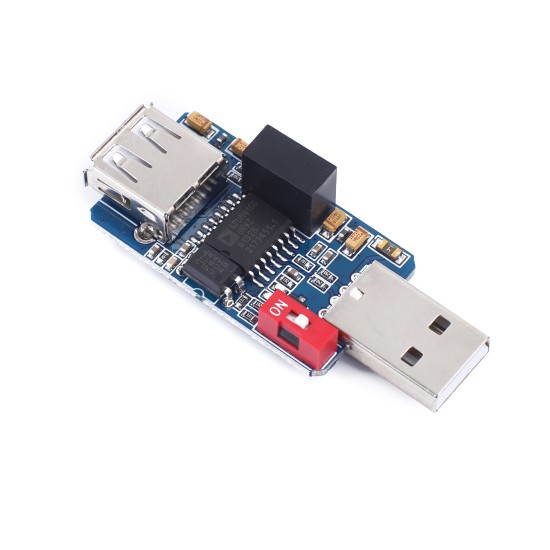

USB isolationer/, USB to USB/Industrial Coupling Protection Board Adum4160/Adum3160

Compatible with USB 2.0, providing completely isolated 1.5 Mbps and 12 Mbps data rates, isolation of 1500V voltage, no external power supply, no driver.The timing, amplitude, direction, rate, regulations, and complicated of the USB signal are complex, so the magnetic isolation of the USB signal is also very complicated. This model basically represents the highest level in the isolation field.

Technical indicator:
■ Compatible with USB2.0
■ Adum3160 isolation voltage: 2500V
■ Power module isolation voltage: 1500V
■ Support USB low speed 1.5Mbps and full -speed 12Mbps does not support pure high -speed devices
■ Support USB control transmission, batch transmission, interrupt transmission, synchronization/equal time transmission
■ Power supply power supply: taken from the computer host USB port
■ Driver -free, more convenient to use
■ Use environment: -40 ℃ to 85 ℃

Product Attributes
Brand	none
Model	USB isolationer
