MPU9250 299DOF Nine -axis/9 -axis gesture acceleration gyroscopy guidelines needle magnetic field sensor

MPU9250 299DOF Nine -axis/9 -axis gesture acceleration gyroscopy guidelines needle magnetic field sensor

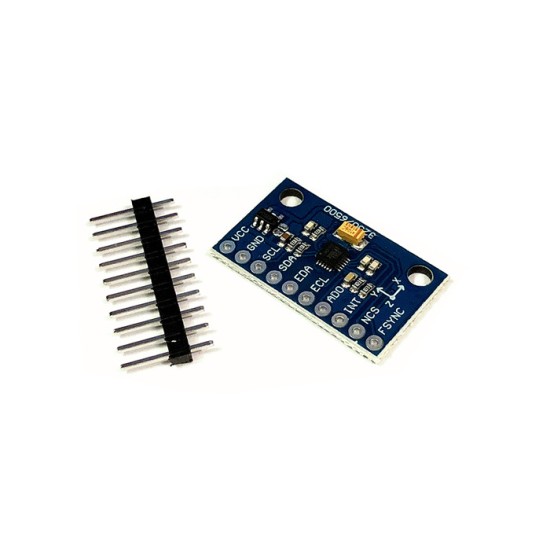

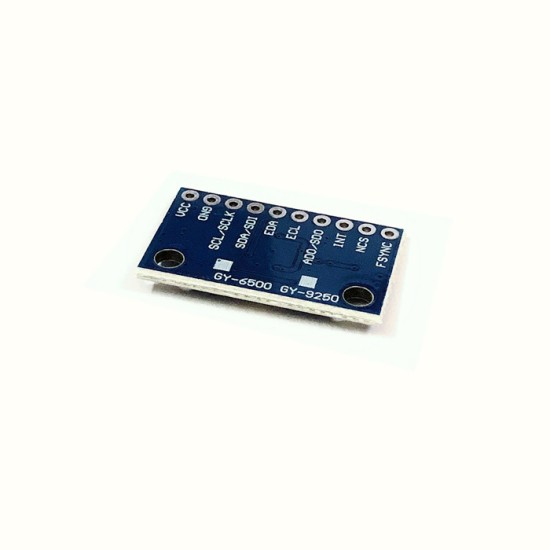

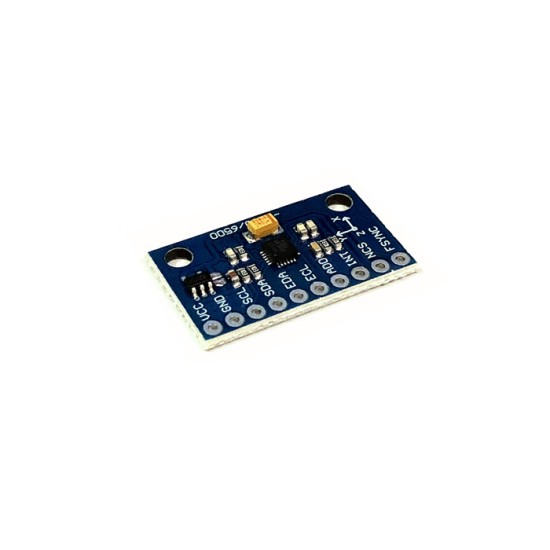

MPU-9250 module (three-axis gyroscope + three-axis acceleration + three-axis magnetic field)

Document network disk copy webpage download: http://pan.baidu.com/s/1nu67w6l

Module model: GY-9250

Use chip: MPU-9250

Power supply power supply: 3-5V (internal low voltage difference stabilization voltage)

Communication method: Standard IIC/SPI communication protocol

Chip built -in 16bit AD converter, 16 -bit data output

Gyroscope range: ± 250 500 1000 2000 °/s

Acceleration range: ± 2 ± 4 ± 8 ± 16g

Magnetic field range: ± 4800ut

Using Shenjin PCB, the quality of the machine welding process to ensure the quality

Point spacing 2.54mm

Module size 15mm*25mm

Product Attributes
Application field	1
Brand	Other/Other
Goods number	DB56
Model	Other/Other
Special service	1
There is an authorized self -owned brand	no
Whether the supply of supply of cross -border exports	yes
