Trigger loop fixed -time switch circuit dual MOS control board instead of continuous electrical module 12

Trigger cycle time -delay switch circuit Double MOS control board instead of electrical module 12 24V

0.1 seconds (small) ~ 999 minutes (large) continuous adjustment

This product is simple and easy to use and powerful, but buyers are requested to look at the operation explanation of this product in detail, very practical products.

Character characteristics and use:

1. Implement the high frequency of the circuit, fast frequency, and the number of unlimited switches;

2. There will be no noise, no electric spark, no electromagnetic interference;

3. Life life is longer than commonly used electromagnetic relay;

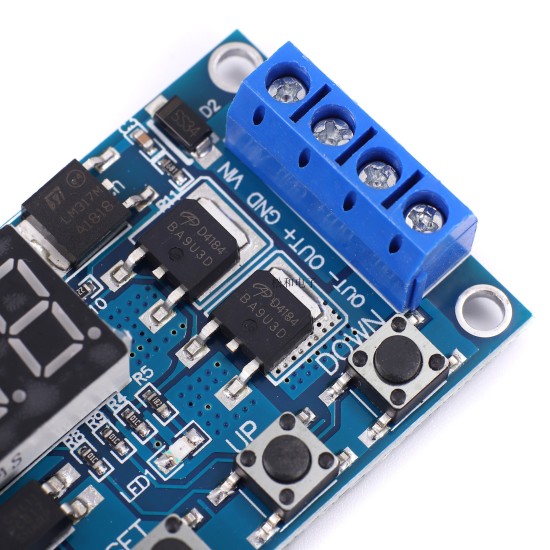

4. Using dual MOS parallel source output, the internal resistance is lower, the current is larger, the power is strong, and the power is 15A and 400W, which meets the use of most equipment;

5. It is often used to control motors, light bulbs, LED light bands, DC motors, micro pumps, solenoid valves, etc. Through this module, these devices can be easily controlled, which is very convenient.

Module highlights:

1. Wide voltage work (5 ~ 36V), most equipment can be used, which is very convenient;

2. The interface is clear and simple, powerful, easy to understand, and almost meet all your needs;

3. There is a one -click emergency stop function (STOP key), with anti -connection protection, not burning in reverse;

4. Added sleep mode, after enable, there is no operation within 5 minutes, automatically turn off the display;

Wake up arbitrarily;

5. You can set different OP, CL, and LOP parameters. These parameters are independent and stored separately;

6. All settings parameters are automatically powered off.
