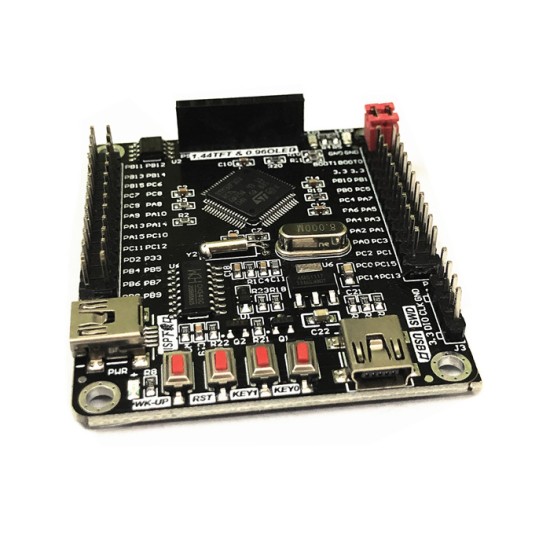

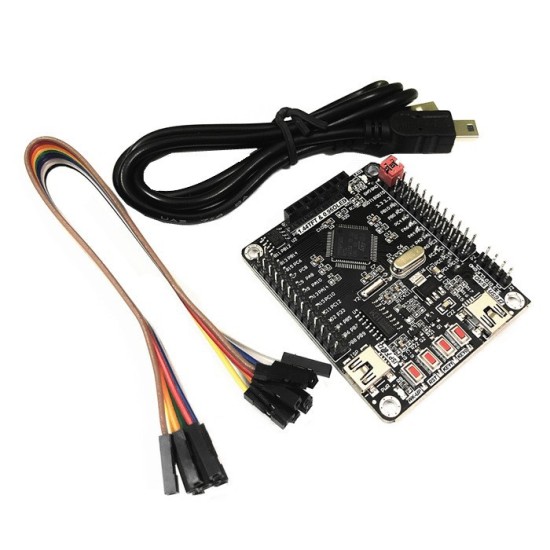

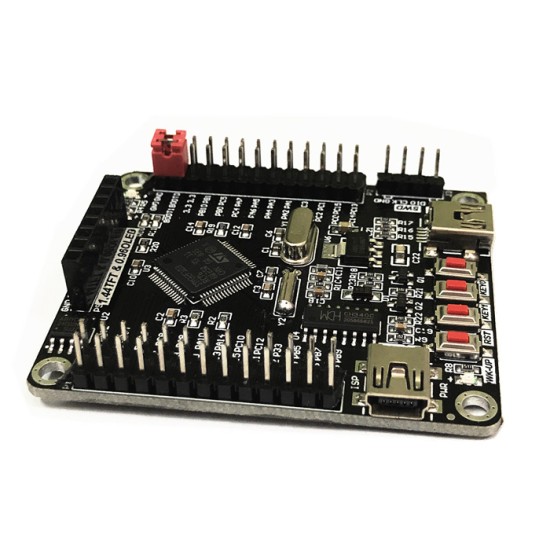

STM32F103RCT6/RBT6 development board STM32 development board small system board 51 AVR

Link: https://pan.baidu.com/s/15tak- vmgtcebqoowr5cvg
Extract code: CBXI

Hardware resources:

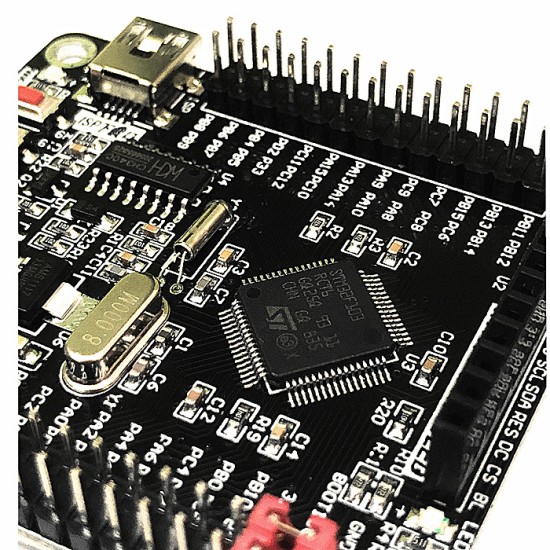

1. STM32F103RCT6, TQFP64, Flash: 256K, RAM: 48K
2. Standard SWD download mouth
3. A power indicator light
4. Two state indicator lights
5. A SPI Flash chip, W25X16, a capacity of 2M byte
6. A EEPROM chip, 24C02
7. All the MINIUSB interfaces, you can power the system version, reserve USB communication functions
8. A startup mode configuration interface
9. All the MINIUSB interfaces, you can supply power to the system version, implement (ISP) one -click download function
10. A 32.768 crystal can be used for built -in RTC, or for calibration
11. One reset button, which can be used for reset MCU and OLED
12. Three function keys, where WK_UP has both awakening function
13, 8M crystal (up to 72M through the PLL internal PLL of the chip)
14. LM1117-3.3V stabilization chip, providing a maximum 800mA current
15. Port expansion patchwork 13x2 road +2 road
16. A TFT1.44 LCD screen or OLED screen module interface
17, 4 weeks 4 3.5mm positioning holes
18. Size: 56x62mm

Product Attributes
Brand	Other/Other
Output Voltage	-
