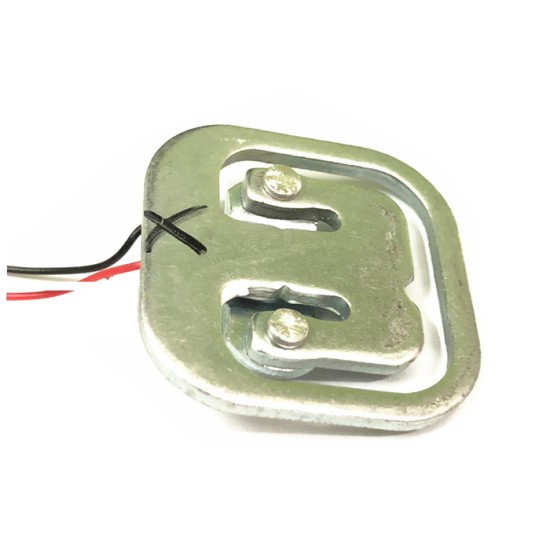

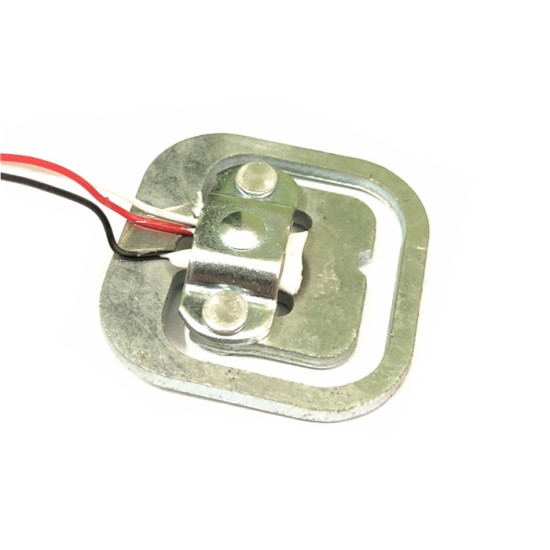

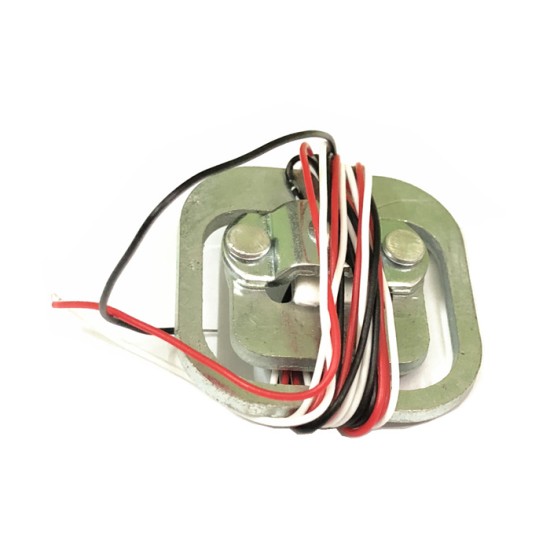

Sensor body scale 50kg weighing sensor resistance strain half -bridge sensor 50kg

All the information is in this description, there is no additional information, and it does not provide technical support.If you are not sure, you do n’t know how to use it, it is recommended that you do n’t buy it.

Size: 34mmx34mm

The interior is 1,000 Euros and half -bridge strain films, the range is 50kg weighing sensor, half -bridge structure.

During the measurement, the external force is properly applied to the outer side.The strain beam must be bending under the stress, and there should be no blocking materials on the other side of the beam to the beam.

Inside this sensor is a set of semi -bridge strain films. The use method can have the following three:

1. Use a sensor to form a full bridge measurement with an external resistance. The range is the range of a sensor: 50kg.The external resistance requirements are high.

2. Use two sensors to form a full bridge measurement. The sum of the range of two sensors: 50kgx2 = 100kg

3. Use four sensors to form a full bridge measurement.

Product Attributes
Brand	none
Output type	Power module
