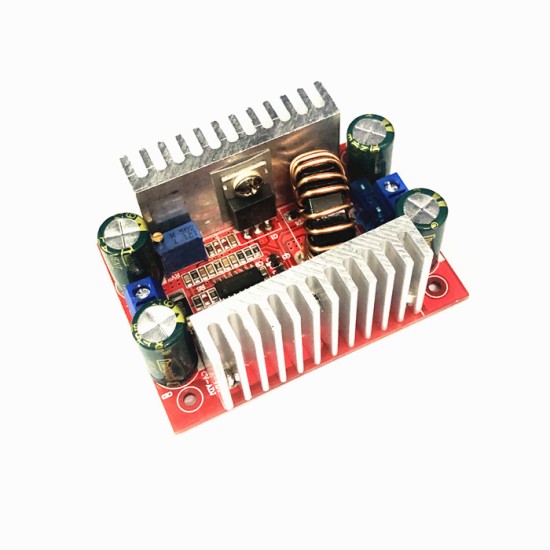

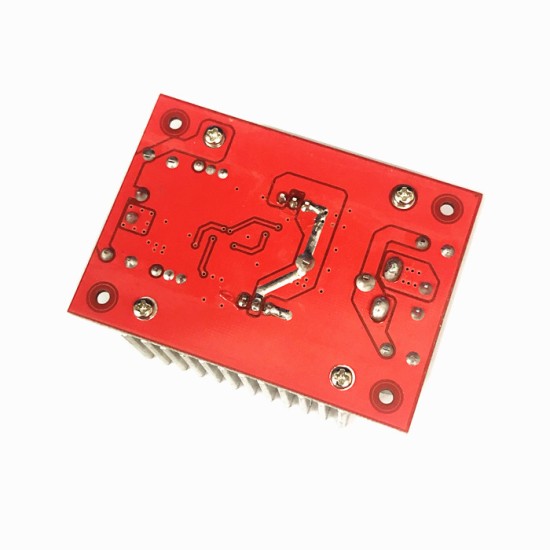

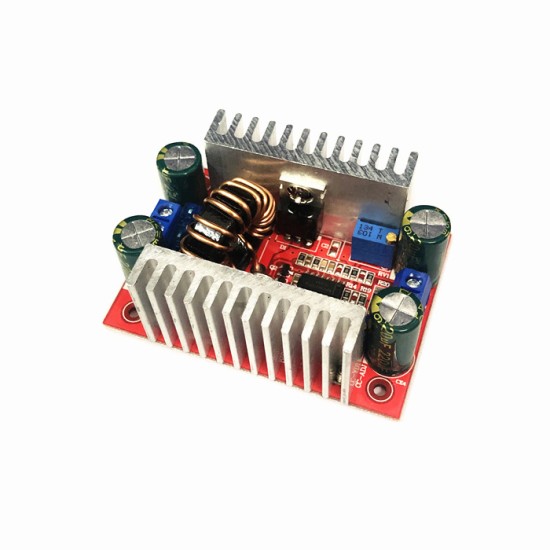

400WDC-DC high-power constant voltage voltage voltage voltage boost power supply module LED boost drive laptop battery charging

【Module Name】 400W Ratial Hanging Module

[Module Nature]: Non -isolation of boosting module (BOOST)

[Input voltage]: DC8.5V-50V

[Input current]: 15A (MAX) more than 8A, please strengthen heat dissipation

[Static working current]: When 10mA (12V liters 20V, the higher the output voltage, the more static and too much current will increase)

[Output voltage]: 10-60V continuously adjustable (default output 19V shipments, please explain to the shopkeeper if you need other voltages.)

12-80V fixed output (for batch customers)

[Output current]: 12A MAX exceeds 7A, please strengthen heat dissipation (related to the input and output pressure difference, the larger the pressure difference, the smaller the output current)

【Flowing range】: 0.2-12A

[Output power]: = input voltage*10A, such as: enter 12V*5A = 60W, input 24V*5A = 120W,

Enter 36V*5A = 180W, enter 48V*5A = 240W,

[Work temperature]: -40 ~+85 degrees (when the ambient temperature is too high, please strengthen heat dissipation)

[Working frequency]: 150kHz

[Conversion efficiency]: Maximum of 96%(efficiency is related to input, output voltage, current, voltage difference))

[Overcurrent protection]: There are (input more than 15A, automatically reduce the output voltage, there is a certain range error.)

[Enter the reverse connection protection]: None, (if you need to be more in the inverting current, please enter the string of diode in the input)

[Installation method]: 4 2.5mm screw holes

[Wiring method]: Wiring output

[Module size]: 67mm long 48mm high 28mm

[Module single weight]: 60 grams

1. Output voltage/current adjustment method:

1. Adjust the "CV-Adj" potentiometer, and set the output voltage to the voltage value you need according to your battery or LED.Such as 10 string of LED voltage 37V.(The voltage of the clock is large, and the voltage of the clock is small)

2. Inclocking the "CC-ADJ" potentiometer about 30 laps, set the output current to minimize, connect to LED, adjust the RV2 potentiometer to the current you need.For battery charging, after the battery is installed, then the output is received, and the current of RV2 is adjusted to the current you need.More, the smaller the charging current.) (The current of the clock is small, and the clock current is large)

Please do not adjust the current in a short circuit. The circuit structure of the boost module cannot be adjusted in a short circuit.

Scope of application:

1. DIY a voltage-voltage power supply, input 12V, output can be adjusted at 12-50V.

2. Power on your electronic device, you can set the output value according to your system voltage.

3. As a power supply power supply, power for your laptop, PDA or various digital products.

4. DIY a high -power notebook mobile power supply: with a lithium battery pack with a large capacity 12V, so that your book can be on wherever you go.

5. Solar panels are stabilized.

6. Charging batteries, lithium batteries, etc.

7. Drive high -power LED lights.
