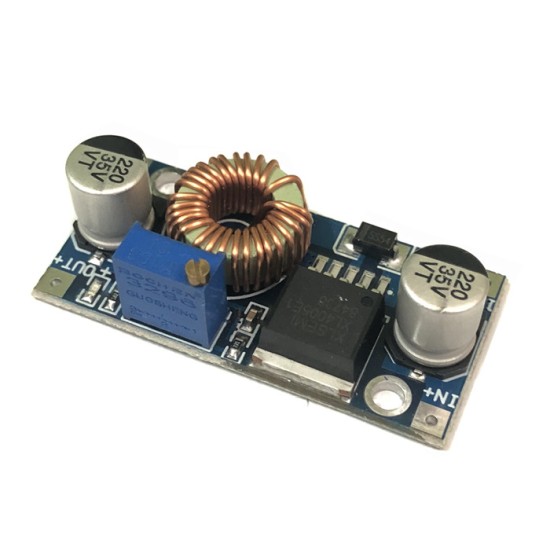

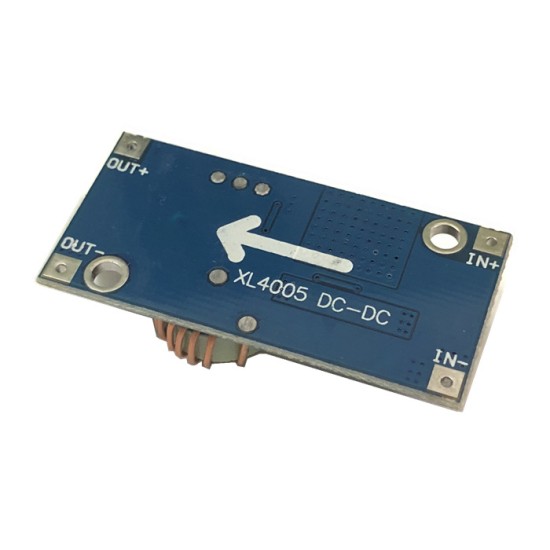

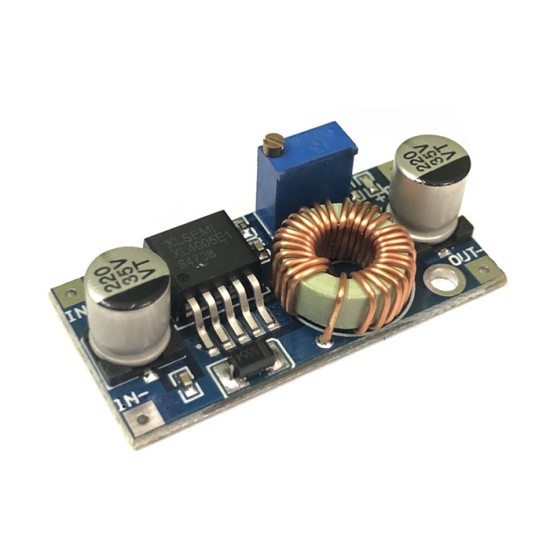

High-power 5A XL4005E1 Highlight DC-DC output can adjust the voltage-down power supply module far exceeds 2596

DC-DC5A Large current Anti-voltage pressure power module

Application field:

DIY mobile power, vehicle power supply, communication equipment power supply, etc.

Technical parameters:

Model name

DC-DC 5A large current antihypertensive power module

Module nature

Non -isolation reduction

Rectification method

Non -synchronous rectification

Input voltage

5V-32V

Output voltage

0.8V-24V

Output current

Peak 5A (to strengthen heat dissipation above 3.5A or more)

Conversion efficiency

Up to 90%

Switching frequency

300kHz

Output ripple

30mv (air load)

Load adjustment rate

± 0.5%

Voltage adjustment

± 2.5%

Working temperature

-40 ℃ to+85 ℃

Peripheral size

43*21*14 (long*width*height) (mm)

Features: Using a high -power magnetic ring to control the inductance and large current control chip, it is small, large in size, high power, and high efficiency.

Product Attributes
Brand	none
