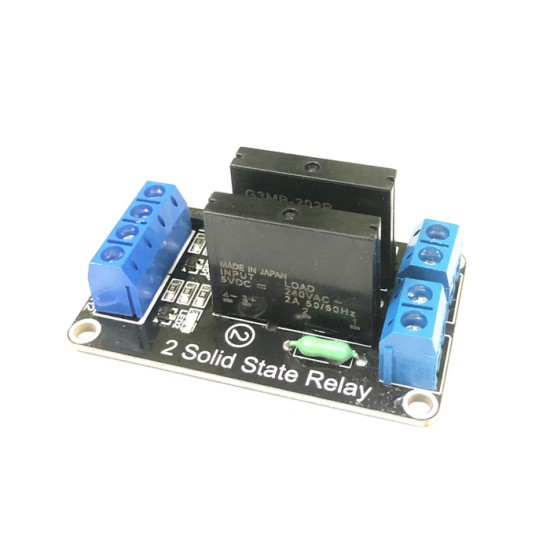

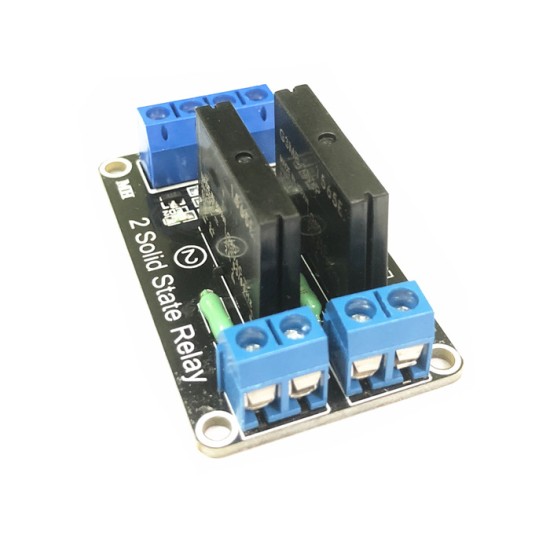

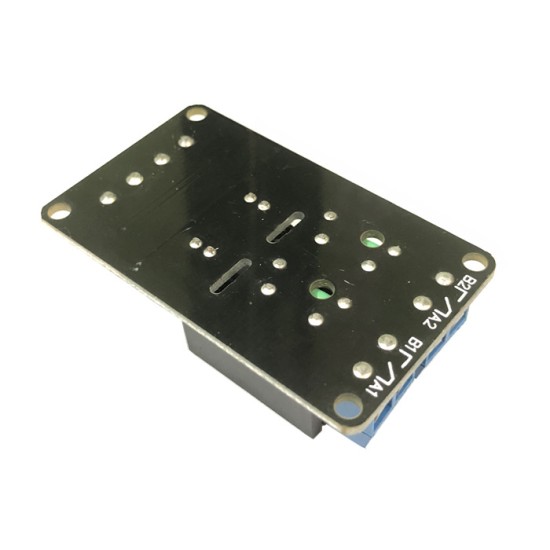

2 Low 5V Low -level Solid -state Rept Electric Module Turn with a fuse solid -state relay 250V2A

2 Low 5V Low -level Solid -state Rept Electric Module Turn with a fuse solid -state relay 250V2A

Product introduction:
1. 5V solid -state relay 240V 2A, output band resistance fuse 240V 2A.
2. Size: 55*33*25 (long*width*height) Net weight: 21.5g
3. Enter power supply: 5V DC (160mA)
4. Enter control signal voltage:

(0-2.5V status low level relay on)
(3.3-5V Status High level relay off)

5. The blue KF301 terminal is more convenient.
Module interface:
Enter part:
DC+: Positive power supply (power supply at the voltage of relay)
DC-: The negative pole of the power supply
CH1: 1 relay module signal trigger terminal (low -level trigger valid)
CH2: 2 Lounge relay module signal trigger terminal (low -level trigger valid)
High level and low level meaning:
High -level trigger refers to a positive voltage between the signal trigger terminal (IN) and the negative electrode of the power supply. It is usually a trigger method connected to the positive electrode of the power supply.When the voltage is voltage, the relay is sucked.
Low -level trigger refers to the voltage between the signal trigger terminal and the negative electrode of the power supply to OV, or the voltage of the trigger end is lower than that of the positive pole of the power supply. When the voltage that can be triggered is as low asA trigger method of the negative electrode of the power supply and the trigger end enables relay to suck.
Electric parameters:
Voltage version of static current working current trigger voltage touch current
1 Road 5V 0MA 12.5MA 0-2.5V 2MA
2 Road 5V 0MA 22.5MA 0-2.5V 2MA
Product use instructions:
1. Power supply of modules: The power supply must be DC, and the voltage must be consistent with the voltage of the relay
2. Wiring method:

Enter part:
DC+: Positive power supply (power supply at the voltage of relay)
DC-: The negative pole of the power supply
CH1: 1 relay module signal trigger terminal (low -level trigger valid)
CH2: 2 Lounge relay module signal trigger terminal (low -level trigger valid)
High level and low level meaning:
High -level trigger refers to a positive voltage between the signal trigger terminal (IN) and the negative electrode of the power supply. It is usually a trigger method connected to the positive electrode of the power supply.When the voltage is voltage, the relay is sucked.
Low -level trigger refers to the voltage between the signal trigger terminal and the negative electrode of the power supply to OV, or the voltage of the trigger end is lower than that of the positive pole of the power supply. When the voltage that can be triggered is as low asA trigger method of the negative electrode of the power supply and the trigger end enables relay to suck.

Electric parameters:
Voltage version of static current working current trigger voltage touch current
1 Road 5V 0MA 12.5MA 0-2.5V 2MA

2 Road 5V 0MA 22.5MA 0-2.5V 2MA

Product use instructions:

1. Power supply of modules: The power supply must be DC, electric

The voltage of the voltage is consistent with the voltage of the relay

2. Wiring method:

When the signal trigger end has a low level trigger, the relay will be connected, and the device has

Work
