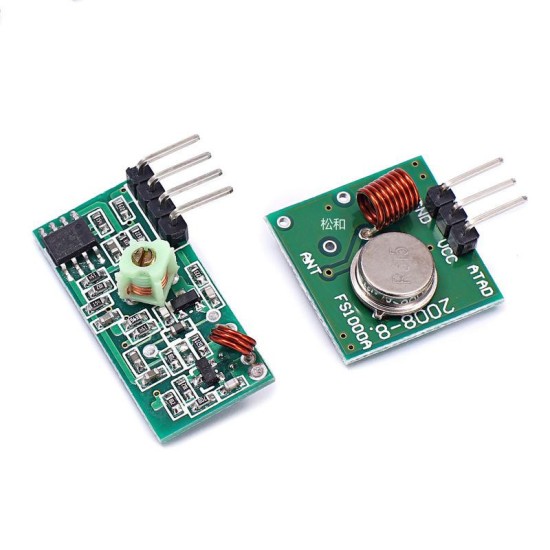

315m ultra -regenerative module wireless launch module anti -theft alarm transmitter 1 pair

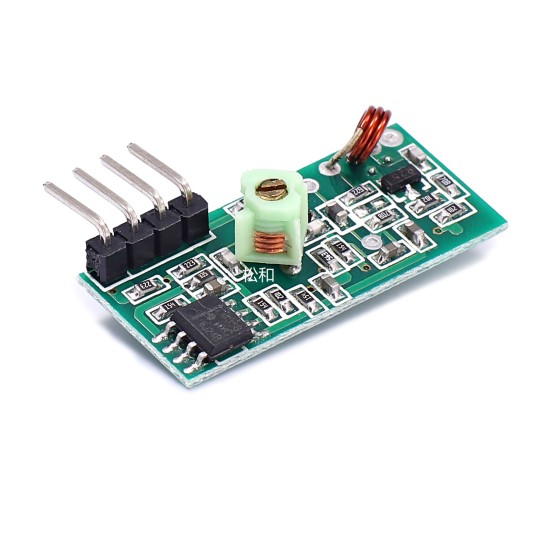

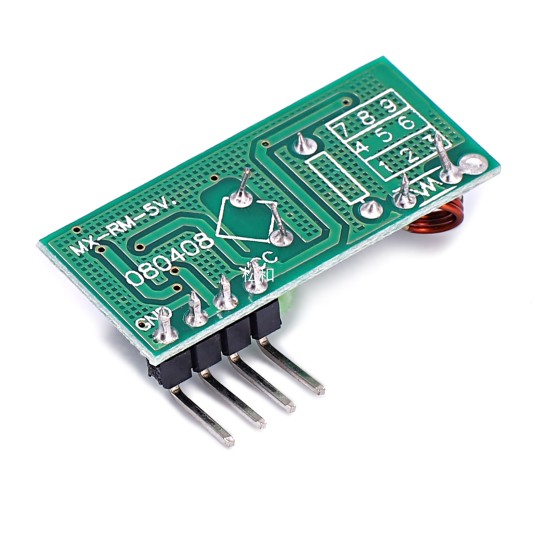

Working voltage: DC5V Static current: 4MA

Receive frequency: 315MHz

Receive sensitivity: -105db

Size: 30*14*7mm external antenna: 32cm single -core, wound into spiral

Technical parameter

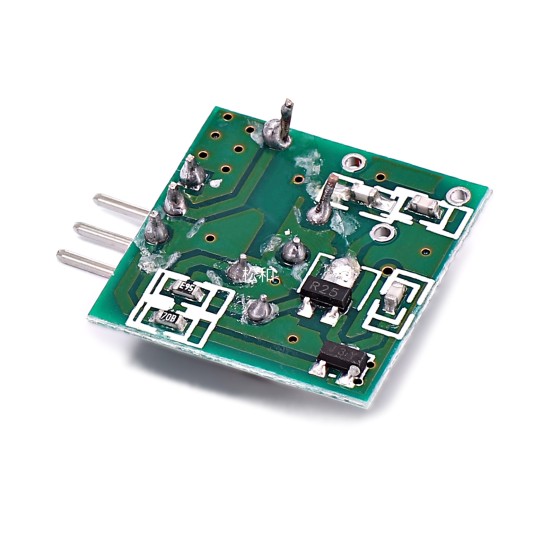

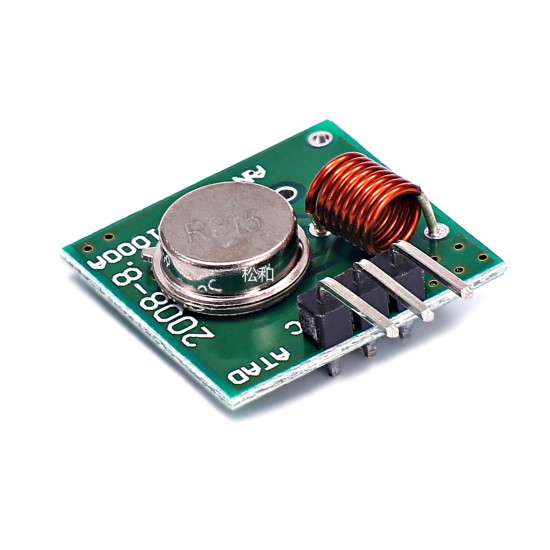

Launch distance: 20-200 meters (different voltage, different effects) Work voltage: 3.5-12V Standard Size: 19*19mm

Working method: AM transmission rate: 4KB/s transmission power: 10MW

Launch frequency: 315M

External antenna: 25cm ordinary multi -core or single core wire

Spinning arranges from left → right: (data; VCC; GND)

Application environment

Remote control switches, receiving modules, motorcycles, car anti -theft products, family anti -theft products, electric doors, rolling door, window, remote control LED, remote control audio, remote control electric door, remote control dribbled door, remote -controlling door, remote control rolling door, translationGate -control systems such as doors, remote control opening machines, closing machines, remote control curtains, alarm hosts, alarms, remote control motorcycles, remote control electric vehicles, remote control MP3, etc.

Self -selected accessory

Use it with company remote control series products.

Remark

The VCC voltage should be consistent with the working voltage of the module, and the power supply is filter;
The antenna has a great impact on the receiving effect of the module. It is best to connect the 1/4 wavelength antenna. Generally, the 50 ohm single -core wire is used. The length of the antenna is about 23cm with a length of 315m.

The antenna location also affects the module receiving effect. During installation, the antenna is straightened as possible, away from the shielding body, high pressure, and interference sources; the receiving frequency, decoding method and oscillation resistance should match when using.
