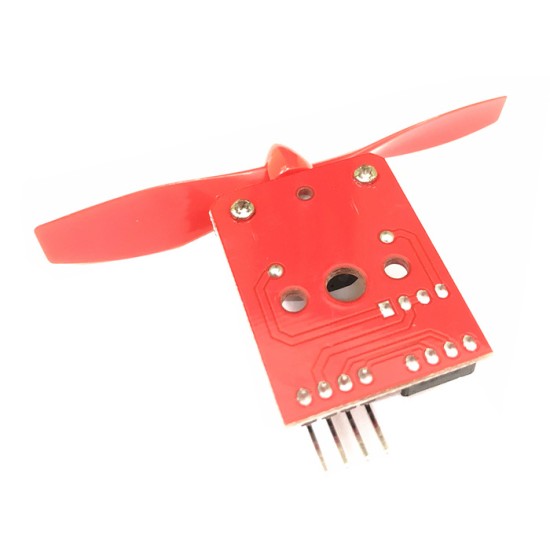

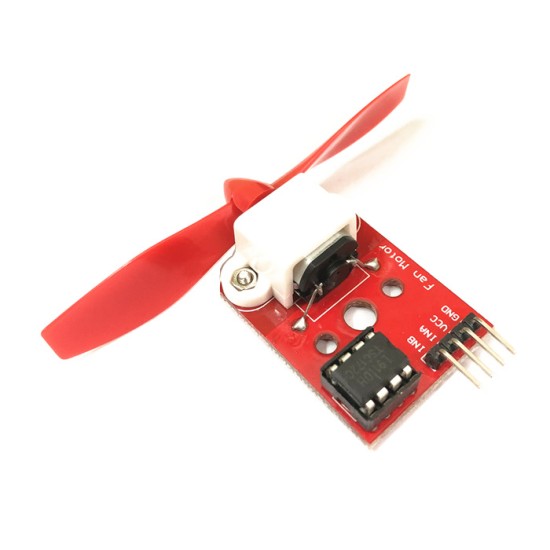

L9110 fan module fire extinguishing robot

Information http://pan.baidu.com/s/1O6OK03K

1. Functional characteristics:

Product size: 50*26*15mm (excluding propeller)

Paddle diameter: 75mm

Working voltage: 5V

The L9110 driver can control the installation holes in front and backward, compatible with the rudder of the steering gear to control high -quality propellers with high efficiency.It can easily destroy the flame of the fire machine outside 20cm can be used for the production of fire -saving robots, and the robot design and development must be necessary

2. Module function test

Hardware requirements

Arduino controller × 1

USB data cable × 1

9110 fan module × 1

Module connect to Arduino board:

The module's VCC connection 5V, GND connection GND, INA connection digital interface 9, INB connection digital interface 8, as shown in the figure below:

Product Attributes
Brand	Other/Other
Model	L9110 fan module
