STM32 development board STM32F103RCT6 small system board ARM one-click download dual Type-C port

Link: https://pan.baidu.com/s/1bxw4pxrwtcbb_h-eggjepq? Pwd = 1234

Extract code: 1234

Product features:
With ISP one -click, you don't need to burn the recorder, and it is equipped with a complete burning tutorial!

With SWD interface, support ST-Link, Jlink simulation and record!

If you have any questions, please contact the customer service in time, and we will make every effort!

Notice:

1. The needle is artificially welded, and there will be traces of rosin residue.If you mind, please take a shot

Welding by itself.

2. After testing, the 1.44 -inch TFT display has been burned.

Hardware resources:

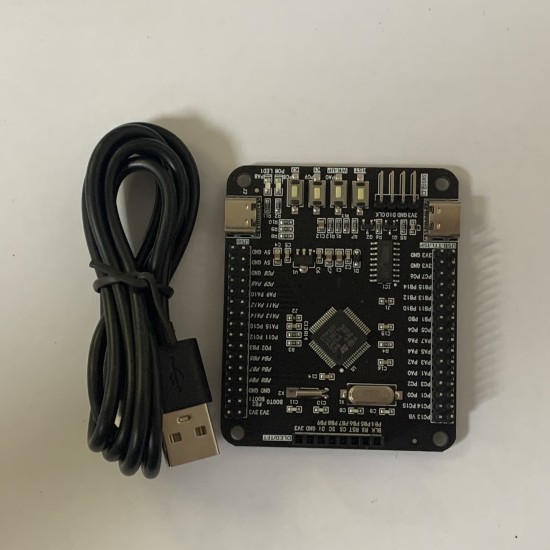

1. Original STM32F103RCT6, TQFP64, Flash: 256K, RAM: 48K.

2. Standard SWD, simulation port, can be connected to Jlink, ST-Link.

3. A power indicator, a running indicator.

4. Two Type-C interfaces, one can supply the system version of power+USB communication function, and the other is a string

Oral communication or ISP one -click automatic interface.

5. ISP one -click function, no need to set up Boot0 and BOOT1.

6. A 32.768 clock crystal can be used for built -in RTC or used for calibration.

7. A reset button that can be used for reset MCU.

8. Three function keys, where WK_UP has both awakening function.

9, 8M external crystal (up to 72M through the internal PLL of the chip).

14. LM1117-3.3V stabilization chip, which provides a maximum of 800mA current.

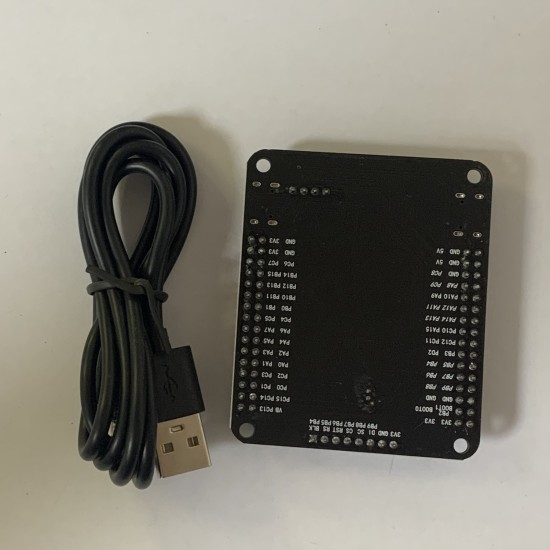

15. Port expansion and double row 16P pins.

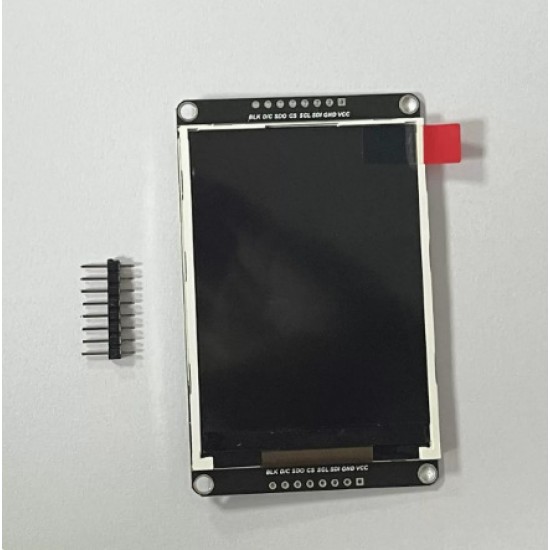

16. A TFT LCD screen interface, which can connect 1.44 inches and 1.8 -inch TFT screens.

17, 4 3mm positioning holes.

18. Size: 5.5x6.7cm.

Software resources:

1. Programming software MDK

2. Supporting test sample C programs

3. Supporting chip information

4. Circuit diagram

5. Use operation video
