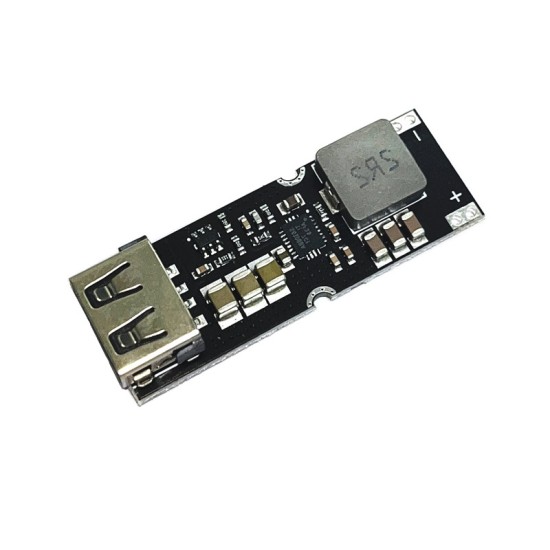

TPS61088 boost fast charge power module mobile QC fast charging 3.2v3.7v4.2V to 5V9V12V

Note:

The module does not have anti -connection protection. Remember not to connect the wrong input terminal to the negative electrode.
The input voltage range is 2.8 to 4.5V, and you cannot enter 5V input.
The lithium battery must be added with a protective board, and the continuous current of the protective board is at least 5A.
This module can supply power in a single section of lithium batteries, and it is also possible to connect with more and parallel power.

Product introduction:

Name: Single -section lithium battery boost fast charge power supply module
Main -control chip: TPS61088A

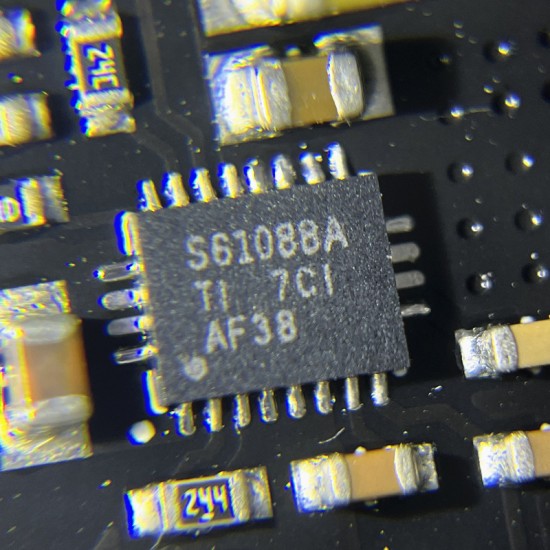

Identification chip: FP6601Q
Input voltage: 2.8 ～ 4.5V, very suitable for the use of 3.7V polymers lithium battery
Output voltage: default 5V, after triggering the fast charge, the protocol is between 4.5V and 12V.
Enter the rated current: 8A
Output current: 5V3A, 9V2A, 12V2A.The output current adapts.
Output power: maximum 24W.
Support protocol: QC2.0, QC3.0, Huawei FCP, DCP protocol
The highest efficiency can reach 93%, and the typical value is 90%.
Enter the wiring method: welding line, try to use thick thread as much as possible
Module size: 47.5 (long)*16.5 (width)*8 (height) mm (including USB)
Module net weight: about 7 grams

Supplementary chip -related information:
Tianyu FP6601Q chip integrates the Hisilicon Express Charging Agreement and Qualcomm QC2.0/3.0USB interface fast charge protocol, which can quickly charge the device that supports FCP and QC2.0/3.0 protocols.In addition to supporting USB BC1.2 standards, Apple and Samsung devices are also supported.This chip can automatically detect whether the current connected device is QC2.0/3.0 or FCP device, so as to mobilize the regulating voltage.
Product features: 1. Support FCP voltage current output protocol.2. Support Qualcomm QC2.0/3.0 Classa 5V, 9V, 12V voltage output.3. Automatically identify FCP and QC2.0/3.0 fast charge protocol.4. Support Chinese telecommunications enterprise YD/T 1591 protocol equipment.
TPS61088 is a high -power density full -integrated boost converter with a 11MΩ power switch and a 13MΩ rectifier switch, which can provide high -efficiency small -size solutions for the portable system.TPS61088 has a wide input voltage range from 2.7V to 12V, which can provide support for the application of single or two lithium batteries.This device has 10A switching current and can provide an output voltage up to 12.6V.
The TPS61088 uses the peak of the adaptive constant cut off time to control the topology structure to adjust the output voltage.Under medium to heavy load conditions, TPS61088 works in the PWM mode.Under light load conditions, this device can select one of the following two working modes through the Mode pin.One is the PFM mode that can improve efficiency; the other is to avoid compulsory PWM mode that can cause application problems due to low switching frequency.You can adjust the switching frequency in the PWM mode through the external resistance from 200kHz to 2.2MHz.The TPS61088 also implements the programmable soft startup function and adjustable switch peak current limit.In addition, the device also provides 13.2V output overvoltage protection, cycle overcurrent protection and heat control protection.
TPS61088 uses a 20 -pin 4.50mm × 3.50mm VQFN package.

Product application introduction:
This module can be applied to a single-section lithium battery for 5V-12V output for general digital products charging, such as mobile phones, iPad, MP3, PSP, etc.Only using the battery can become a large current output moving power supply.It can also be powered by setting output voltage to power 5-12V products.
