Raspberry PI night vision camera sensor light 3W high -power automatic night vision monitoring LED infrared light

Raspberrry Pi

Light -sensitive

Product introduction:

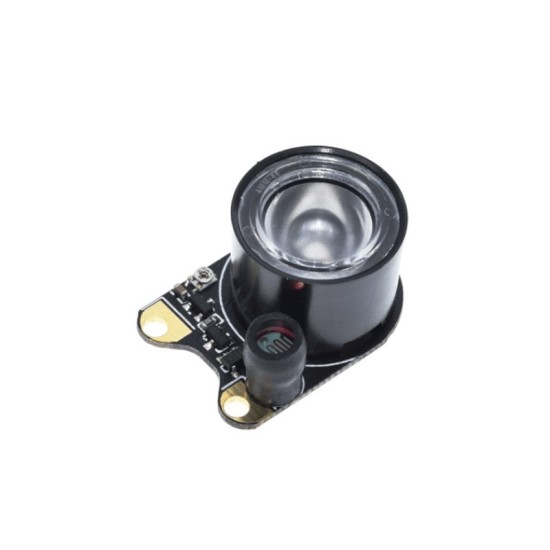

1W high -power 850 infrared light (comes with adjustable resistance and optics resistance to automatically turn on the 1W high -power LED light according to the ambient light), the adjustable resistance can be adjusted. You can use a small screwdriver to gently twist the adjustment of the brightness of the environment.Work.

Working principle:

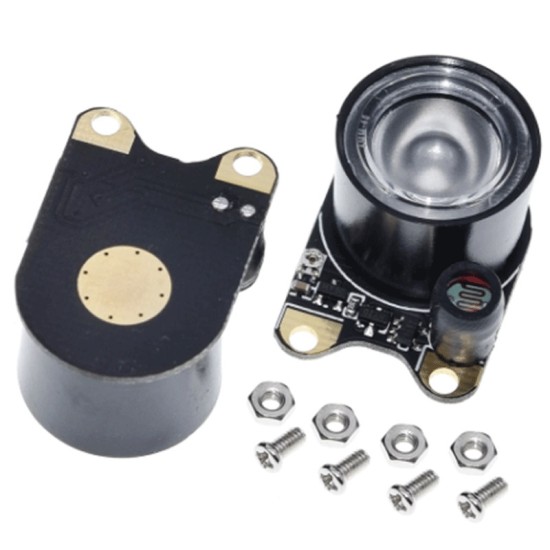

You can use the LED light board and camera PCB bottom plate to use screws together (the raspberry school does not need to perform software control. The working method of the lamp board is when the light is dark, the LED light is automatically turned on, and the LED light is automatically turned off when the light is strong.The premise is that the adjustable resistance on the lamp board needs to be adjusted. We do not adjust the default delivery, because each customer uses different locations and places, so it is automatically turned on by default.The lantern will always be on, so that it will be easy to heat up. Those who use it for a long time are recommended to stick a heat sink.

Product description:

1. Due to the limited power of the Raspberry Pi power, objects within 1 meter-2 meters, the effect is better, too far, the effect is not ideal, please do not shoot.

2. This infrared lamp is 3W high power. When the Raspberry Pi is connected to the 5V 2A power supply, the peripheral equipment has mouse and keyboard, connecting the camera and 2 1W infrared lights, the raspberry school and the camera can work normally, butWhen used for a long time, the power chip of the Raspberry Pi and 2 1W infrared lights will have to varying degrees of heat, so pay attention to the heat dissipation problem (can be connected to the heat sink) during use. At the same timeEquipment power consumption.
